Wire Rope Load Pins, SPA Series

Features

The Strain gages are sealed inside small axial holes within the load pin and are positioned at two locations at the Clevis to Clevis Eye interfaces. In order to sense only those strains which are induced by the shear forces at these two sections, the strain gages are positioned and oriented with great precision, at a neutral plane relative to one specific direction of pin loading.

The four strain gages (two at each location) are electrically connected to form a full bridge, the signal from each strain gage being additive so that the bridge output is proportional to the sum of the loads transmitted by the shear planes of the pin. The circuit typically includes temperature compensating, signal trim (optional) and balance resistors terminating in suitable connector socket or integral cable.

Standard models include detailed calibration data up to 500,000 lbs. Higher capacity calibration data is available at an additional charge. Strainsert factory calibrations are intended to simulate installed conditions, however, it is recommended that an in-place calibration be performed to account for any installation, tolerance, and/or alignment influences affecting sensor measurement.

Some Features Include:

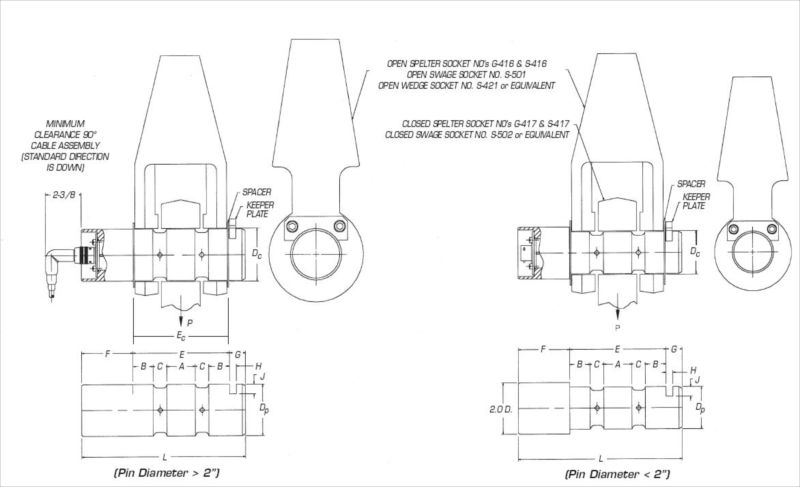

Easy Installation: By replacing pins in Crosby (or equivalent) wire rope sockets, with minimum machining alterations (2-tapped holes), and hardware (2 bolts, keeper plate).

Precison Load Sensing: Complete strain gage bridge circuit bonded and sealed inside small hole along longitudinal axis of pin, by exclusive Strainsert process.

Durability: Due to self protecting nature of strain gage installation sealed inside small holes.

Accuracy: Strainsert force sensing load pins have combined error due to repeatibility and non-linearity of less then 1% of rated load typically.

Applications

Some Applications Include:

• End of Whip Line Winch
• Clam Shell
• Boom Pendant Cable Support
• Crane Hoist Cables
• Mooring Lines
• Bridge Support Cables
• Cable Dead End
