Signal Conditioner, SCD1
Signal Conditioner, SCD1

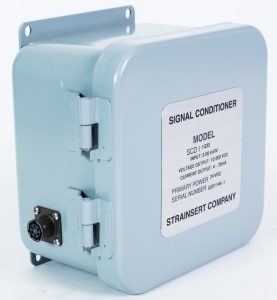

The Model SCD1 is a series of signal conditioners which provide bridge excitation, amplification, span and balance controls and a choice of ±10 Vdc and/or 4-20 ma outputs. Primary input power is available in 120 Vac or a variety of Vdc voltage levels.
Features
The SCD1 can accommodate up to four channels with ±10 Vdc outputs or a maximum of two channels with 4-20 ma outputs.
Standard SCD1 models are packaged in a NEMA-12 rated cabinet (NEMA-4X packages are also available). Each input channel is connected via a six (6) pin receptacle (PT02A-10-6S).
All output signals are provided at a terminal strip inside the signal conditioner cabinet. Each output signal has an individual terminal connection and each signal shares a single common return.
Specifications
These signal conditioners can also be combined with other Strainsert components into a fully comprehensive force measurement system. Please request information on or have an application engineer give you a call us using the contact form link to the right. Strainsert looks forward to assisting you.
Full Specs
| Item # | Channel | Output | Power Supply Voltage | Sensitivity | Bridge Type |
|---|---|---|---|---|---|
| SCD1/G01 | One Channel Input / Output | ± 10 Vdc | 120 Vac | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G02 | One Channel Input / Output | ± 10 Vdc | 5 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G03 | One Channel Input / Output | ± 10 Vdc | 12 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G04 | One Channel Input / Output | ± 10 Vdc | 15 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G05 | One Channel Input / Output | ± 10 Vdc | 24 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G06 | One Channel Input / Output | ± 10 Vdc | 28 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G07 | One Channel Input / Output | ± 10 Vdc | 48 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G08 | Two Channel Input / Output | ± 10 Vdc | 120 Vac | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G09 | Two Channel Input / Output | ± 10 Vdc | 5 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G10 | Two Channel Input / Output | ± 10 Vdc | 12 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G11 | Two Channel Input / Output | ± 10 Vdc | 15 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G12 | Two Channel Input / Output | ± 10 Vdc | 24 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G13 | Two Channel Input / Output | ± 10 Vdc | 28 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G14 | Two Channel Input / Output | ± 10 Vdc | 48 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G15 | Three Channel Input / Output | ± 10 Vdc | 120 Vac | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G16 | Three Channel Input / Output | ± 10 Vdc | 5 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G17 | Three Channel Input / Output | ± 10 Vdc | 12 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G18 | Three Channel Input / Output | ± 10 Vdc | 15 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G19 | Three Channel Input / Output | ± 10 Vdc | 24 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G20 | Three Channel Input / Output | ± 10 Vdc | 28 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G21 | Three Channel Input / Output | ± 10 Vdc | 48 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G22 | Four Channel Input / Output | ± 10 Vdc | 120 Vac | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G23 | Four Channel Input / Output | ± 10 Vdc | 5 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G24 | Four Channel Input / Output | ± 10 Vdc | 12 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G25 | Four Channel Input / Output | ± 10 Vdc | 15 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G26 | Four Channel Input / Output | ± 10 Vdc | 24 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G27 | Four Channel Input / Output | ± 10 Vdc | 28 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G28 | Four Channel Input / Output | ± 10 Vdc | 48 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G29 | One Channel Input / Output | 4 - 20 ma | 120 Vac | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G30 | One Channel Input / Output | 4 - 20 ma | 5 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G31 | One Channel Input / Output | 4 - 20 ma | 12 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G32 | One Channel Input / Output | 4 - 20 ma | 15 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G33 | One Channel Input / Output | 4 - 20 ma | 24 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G34 | One Channel Input / Output | 4 - 20 ma | 28 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G35 | One Channel Input / Output | 4 - 20 ma | 48 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G43 | Two Channel Input / Output | 4 - 20 ma | 120 Vac | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G44 | Two Channel Input / Output | 4 - 20 ma | 5 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G45 | Two Channel Input / Output | 4 - 20 ma | 12 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G46 | Two Channel Input / Output | 4 - 20 ma | 15 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G47 | Two Channel Input / Output | 4 - 20 ma | 24 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G48 | Two Channel Input / Output | 4 - 20 ma | 28 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
| SCD1/G49 | Two Channel Input / Output | 4 - 20 ma | 48 Vdc | 0.5-mv/V (minimum) | 120 Ohm 350 Ohm |
