Custom Load Stud Questionnaire
Home
>
Custom Load Stud Questionnaire
Custom Load Stud Questionnaire
Date
*
MM slash DD slash YYYY
Company
*
Point of Contact
*
First
Last
Email
*
Phone
*
Fax
Quantity (For Customer Supplied Studs)

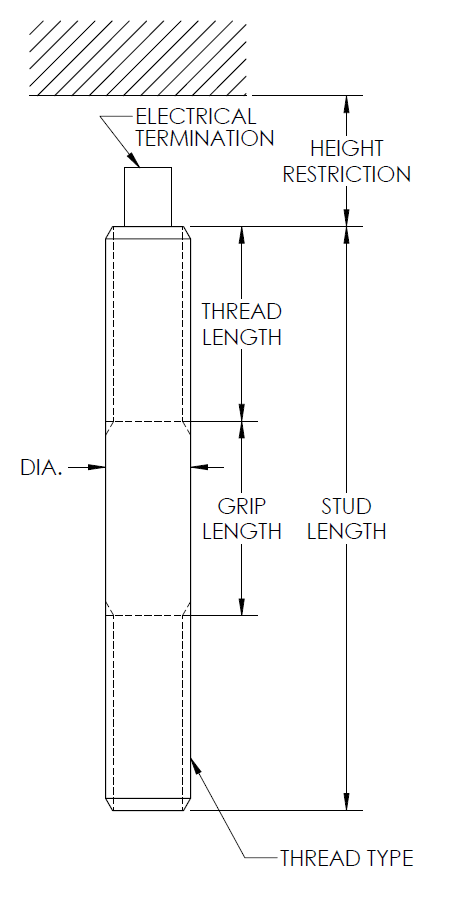

1. STUD GEOMETRY
Diameter:
Bolt Length:
Grip Length:
Thread Length:
Thread Designation:
Bolt Material
Other:
Ult. Tensile Strength:
Yield Strength:
2. MEASUREMENT CAPACITY
in lbs.
in lbs.
3. HEIGHT RESTRICTION
Inches
mm
None
4. ELECTRICAL TERMINATION
Connector
Permanently Attached Cable
Header Termination
5. ELECTRICAL SPECIFICATIONS
1. Gage Installation
Full Bridge
Quarter Bridge
350 ohms
120 ohms
2. Max Operating Temperature
150° F
300° F (max.)
3. Special Options (available on a case-by-case basis)
1. Temperature Compenstaion
150° F
300° F (max.)
2. Signal Trim to common full scale output
2. Signal Trim to common full scale output
3. Outgassing Restrictions
3. Outgassing Restrictions
Additional Comments
Please e-mail any sketches (if necessary) to the attention of Rob Turzanski. Please be sure to include your pertinent contact information and reference this questionnaire.
